Creating the Player

In this section, we will create the first entity of the game: the player.
We will also add movement so the player can move around the screen.

Creating the Draw Behaviour

First, we need a behaviour responsible for rendering a sprite.

Create the file behaviours/draw_sprite.lua:

return {
    init = function(state) -- Called once when the entity enters the scene
        -- Try to get values from the state, fallback to defaults if missing
        state.x = state.x or 0
        state.y = state.y or 0
        state.width = state.width or 32
        state.height = state.height or 32
        state.texture = state.texture or ""
        state.atlas_x = state.atlas_x or 0
    end,

    draw = function(state) -- Called every frame during rendering
        sucata.graphic.draw_rect({
            x = state.x,
            y = state.y,
            width = state.width,
            height = state.height,
            texture = state.texture,
            origin = 0.5,
            atlas_size = state.atlas_size,
            atlas_x = state.atlas_x
        })
    end
}

Now we need to register this behaviour.

Create the file behaviours/init.lua:

return {
    DrawSprite = require("behaviours.draw_sprite")
}

Then expose the behaviours globally in main.lua:

Behaviours = require("behaviours")

Tip It is recommended to create a single shared reference for behaviours instead of requiring them locally. Sucata reuses behaviours that share the same pointer, which improves performance.

---

Creating the Player Entity

Now we will create the player entity.

Create the file entities/player.lua:

local function player(x, y)
    return {
        state = {
            x = x, -- Player position
            y = y
        },

        behaviours = {
            Behaviours.DrawSprite -- Render the player
        }
    }
end

return player

Now spawn the player in main.lua:

local Player = require("entities.player")

sucata.scene.spawn(Player(480, 500)) -- Spawn player near the center of the screen

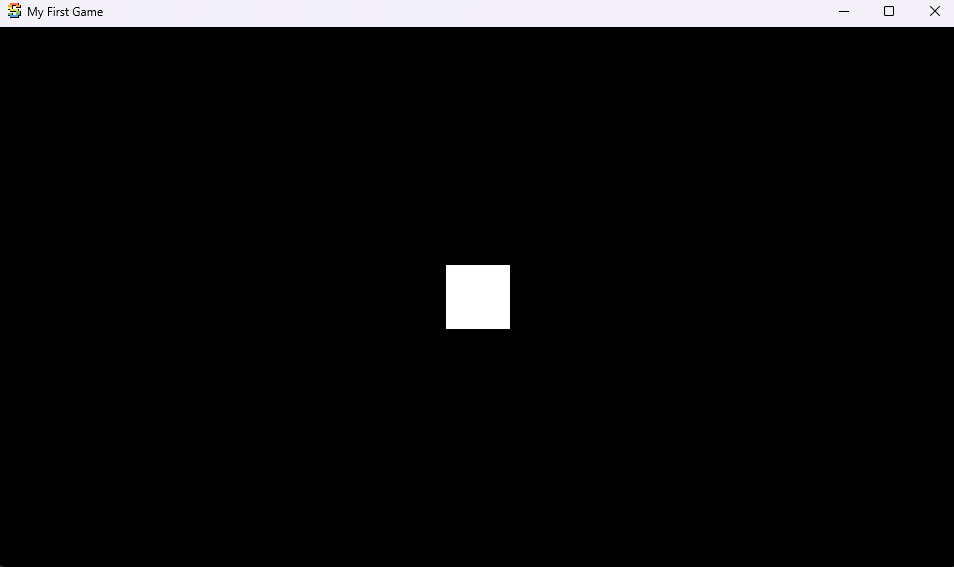

The game should now look like this:

---

Creating the Player Behaviour

Next, we will add player movement using the keyboard.

Create the file behaviours/player.lua:

return {
    init = function(state)
        state.speed = state.speed or 200 -- Default movement speed
    end,

    tick = function(state)
        local dt = sucata.time.get_delta() -- Time between frames

        if sucata.input.is_held("left", "a") then
            state.x = state.x - state.speed * dt
        elseif sucata.input.is_held("right", "d") then
            state.x = state.x + state.speed * dt
        end
    end
}

Player input is handled through the sucata.input module.

Now register the behaviour in behaviours/init.lua:

return {
    DrawSprite = require("behaviours.draw_sprite"),
    Player = require("behaviours.player")
}

Then add the player behaviour to the entity in entities/player.lua:

local function player(x, y)
    return {
        state = {
            x = x,
            y = y
        },

        behaviours = {
            Behaviours.Player,     -- Handle player logic
            Behaviours.DrawSprite  -- Render player
        }
    }
end

return player

Note Behaviours are executed in order, so the player logic runs before rendering.

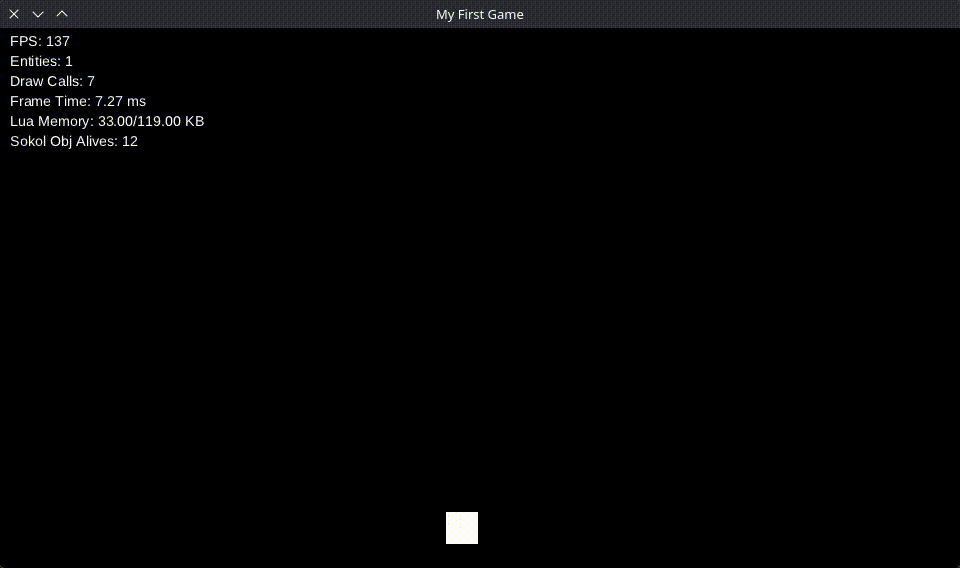

Now the player can move:

---

Adding Screen Boundaries

To finish the initial player implementation, we will prevent the player from leaving the screen.

Update behaviours/player.lua:

return {
    init = function(state)
        state.speed = state.speed or 200
    end,

    tick = function(state)
        local dt = sucata.time.get_delta()

        -- Add horizontal boundaries
        if sucata.input.is_held("left", "a") and state.x > 20 then
            state.x = state.x - state.speed * dt
        elseif sucata.input.is_held("right", "d") and state.x < 492 then
            state.x = state.x + state.speed * dt
        end
    end
}

Now we have the first working version of the player!
